Lincoln Navigator: Cruise Control - Vehicles With: Adaptive Cruise Control / Cruise Control - Component Location. Description and Operation

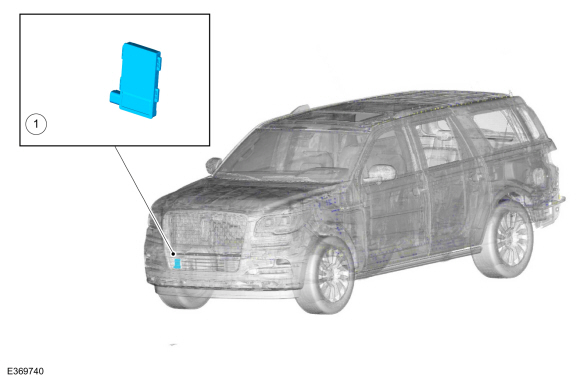

System Diagram
*.sttxt {
visibility: hidden;
}
*.stcallout {
visibility: visible;
}
1
Electric Brake
Booster (EBB)
E361930
2
IPC
3
Accelerator
Pedal
4
Deactivator
Switch
5
Stoplamp
Switch
6
SCCM
..
Other information:
System Operation
BCM
The BCM controls various systems by monitoring inputs from switches,
sensors and network messages from other modules on the HS-CAN1 and from
the GWM . Based on the received inputs, the BCM activates outputs. For
example, the BCM monitors the headlamp switch position. Based on this
input, the BCM may provide voltage to the exterior lamps.
