Lincoln Navigator: Climate Control System - General Information / Air Inlet Door Actuator. Removal and Installation
Removal
NOTE: Removal steps in this procedure may contain installation details.
-
Remove the instrument panel.
Refer to: Instrument Panel (501-12 Instrument Panel and Console, Removal and Installation).
-

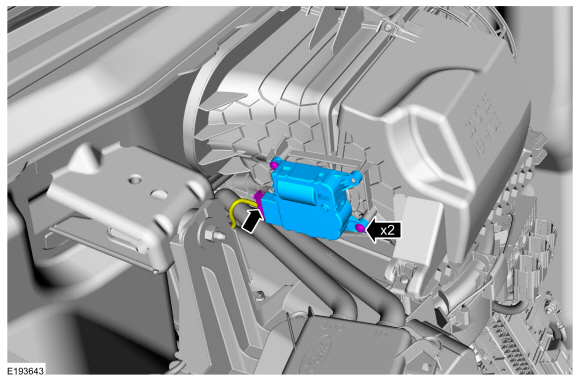

Disconnect the electrical connector, remove the retainers and the air inlet door actuator.
 |
Installation
-
To install, reverse the removal procedure.
