Lincoln Navigator: Wipers and Washers / Washer Hose Repair. General Procedures
Repair
NOTE: This procedure may be carried out on rubber hoses only. If a plastic washer hose is damaged, a new washer hose must be installed.
-
Locate and verify the damaged washer hose.
-

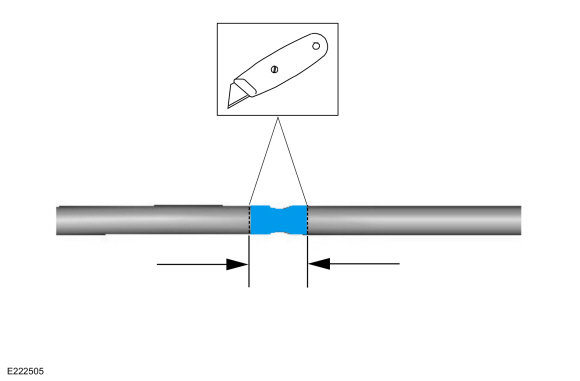

Cut the hose cleanly and remove the damaged portion of the washer hose.
Dimension: 0.5000 in ( 12.7 mm)
 |
-
Install a windshield washer hose adapter between the cut ends of the hose.
 |
-
NOTE: In difficult cases, clamping may be required.
If necessary, install a segment of 6.4 mm (0.25 in) ID black rubber hose over the ends of the washer hose and clamp both ends of the rubber hose using spring clamps.
