Lincoln Navigator: Second Row Seats / Second Row Single Seat Armrest. Removal and Installation
Removal
NOTE: Removal steps in this procedure may contain installation details.
-

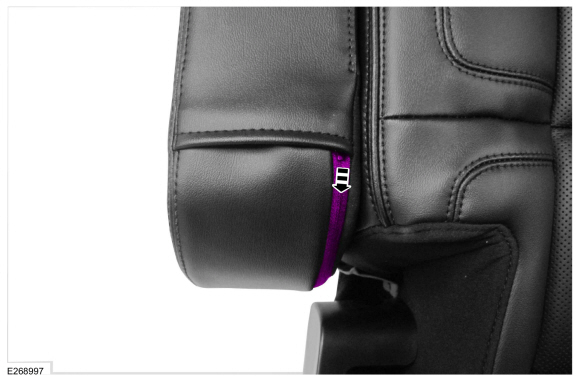

Unzip the second row single seat armrest cover.
 |
-
Remove the second row single seat armrest.
-

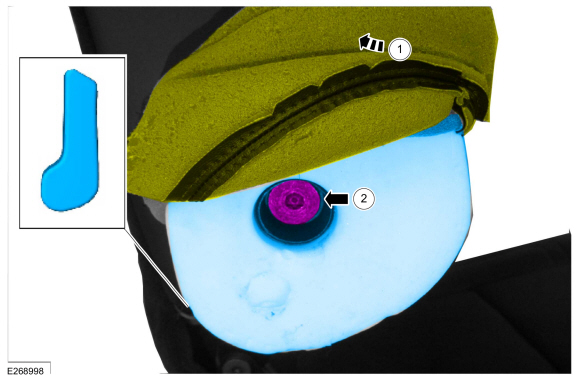

Invert the single seat armrest cover to access the armrest pivot bolt.
-
Remove the bolt.
Torque: 33 lb.ft (45 Nm)
-
Invert the single seat armrest cover to access the armrest pivot bolt.
 |
Installation
-
To install, reverse the removal procedure.
