Lincoln Navigator: Exterior Trim and Ornamentation / Power Running Board (PRB) Connecting Rod. Removal and Installation
Removal
NOTE: Removal steps in this procedure may contain installation details.
NOTE: LH side shown, RH similar.
-
Remove the rear running board bracket.
Refer to: Power Running Board (PRB) Hinge (501-08 Exterior Trim and Ornamentation, Removal and Installation).
-

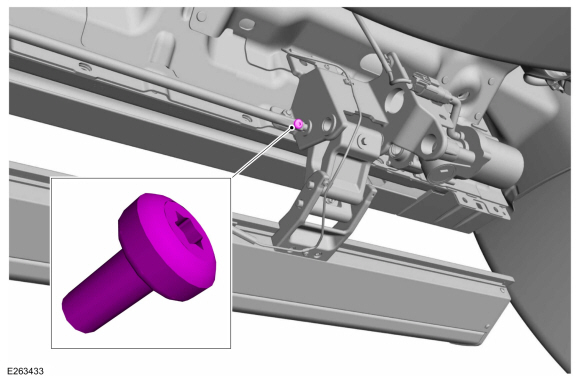

Remove the screw.
Torque: 133 lb.in (15 Nm)
 |
-

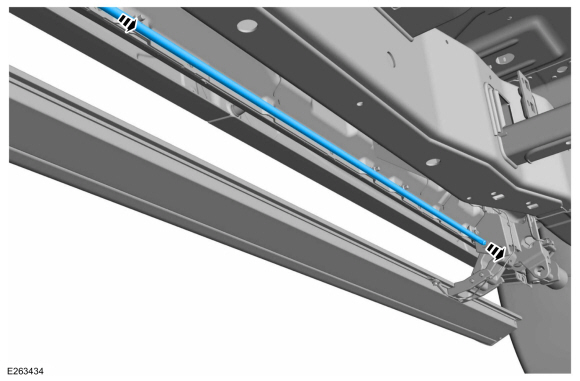

Remove the connecting rod.
 |
Installation
-
To install, reverse the removal procedure.
