Lincoln Navigator: Automatic Transmission - 10-Speed Automatic Transmission – 10R80 / Intermediate Speed Sensor A (ISSA). Removal and Installation
Removal
-
Remove the main control valve body.
Refer to: Main Control Valve Body (307-01 Automatic Transmission - 10-Speed Automatic Transmission – 10R80, Removal and Installation).
-

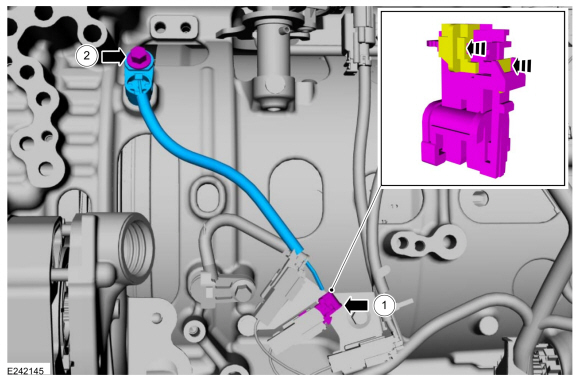

Remove the intermediate speed sensor A.
-
Slide the plastic lock to the unlocked position.
While pressing the plastic tab, disconnect the electrical connector.
-
Remove the bolt and the intermediate speed sensor A.
-
Slide the plastic lock to the unlocked position.
While pressing the plastic tab, disconnect the electrical connector.
 |
Installation
-
Install the intermediate speed sensor A.
-
Install the intermediate speed sensor A bolt.
Torque: 97 lb.in (11 Nm)
-
Connect the electrical connector. Slide the plastic lock to the locked position.
-
Install the intermediate speed sensor A bolt.
 |
-
Install the main control valve body.
Refer to: Main Control Valve Body (307-01 Automatic Transmission - 10-Speed Automatic Transmission – 10R80, Removal and Installation).
Main Control Valve Body. Removal and Installation
Removal
NOTE:
The Solenoid Body Strategy Data Download procedure must be performed if a new main control valve body is installed.
NOTE:
If a main control valve body overhaul is carried out or a new SS is
installed, carry out the adaptive learning drive cycle procedure at the
end of the repair...
Intermediate Speed Sensor B (ISSB). Removal and Installation
Removal
Remove the main control valve body.
Refer to: Main Control Valve Body (307-01 Automatic Transmission -
10-Speed Automatic Transmission – 10R80, Removal and Installation)...
