Lincoln Navigator: Evaporative Emissions - 3.5L EcoBoost (272kW/370PS) / Evaporative Emission Canister Vent Solenoid. Removal and Installation

Lincoln Navigator 2018-2025 Workshop Manual / Engine / Evaporative Emissions - 3.5L EcoBoost (272kW/370PS) / Evaporative Emission Canister Vent Solenoid. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

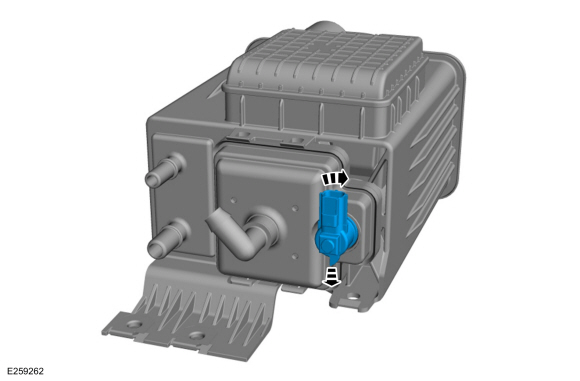

  1. Remove the EVAP canister.
    Refer to: Evaporative Emission Canister (303-13 Evaporative Emissions - 3.5L EcoBoost (272kW/370PS), Removal and Installation).

Installation

  1. To install, reverse the removal procedure.
