Lincoln Navigator: Vehicle Dynamic Suspension / Vehicle Dynamic Suspension - Component Location. Description and Operation

Lincoln Navigator 2018-2025 Workshop Manual / Suspension / Vehicle Dynamic Suspension / Vehicle Dynamic Suspension - Component Location. Description and Operation

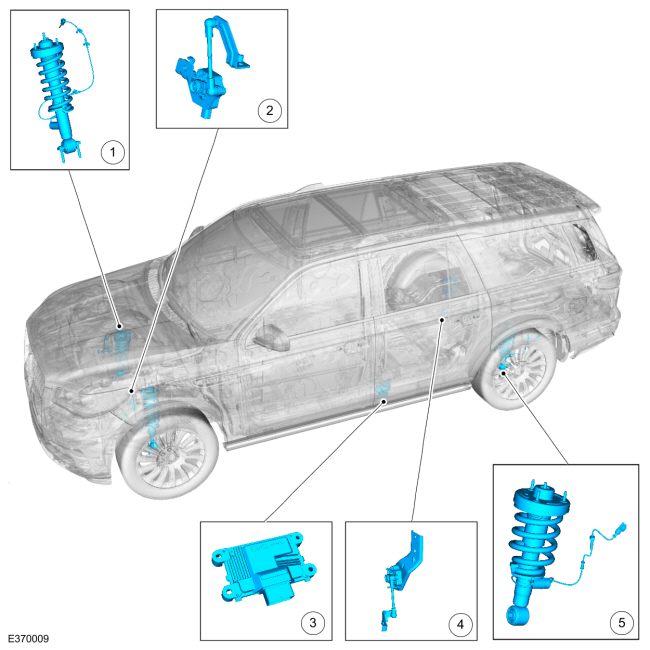

Item Description
1 Front Shock Absorber (2 required)
2 Front height sensor (2 required)
3 VDM
4 Rear height sensor (2 required)
5 Rear Shock Absorber (2 required)

    Vehicle Dynamic Suspension

    ..

    Vehicle Dynamic Suspension - Overview. Description and Operation

    Overview The semi-active suspension dampening provides improved handling, comfort and stability by continuously adjusting the adaptive shock absorber force to the current road and driving conditions...
