Lincoln Navigator: Exterior Lighting / Rear Lamp Assembly. Removal and Installation
Removal
NOTE: Removal steps in this procedure may contain installation details.
NOTE: LH (left-hand) rear lamp assembly shown, RH (right-hand) rear lamp assembly simlar.
-
Remove the rear bumper cover.
Refer to: Rear Bumper Cover (501-19 Bumpers, Removal and Installation).
-
Remove the nuts and the rear lamp side trim.
-

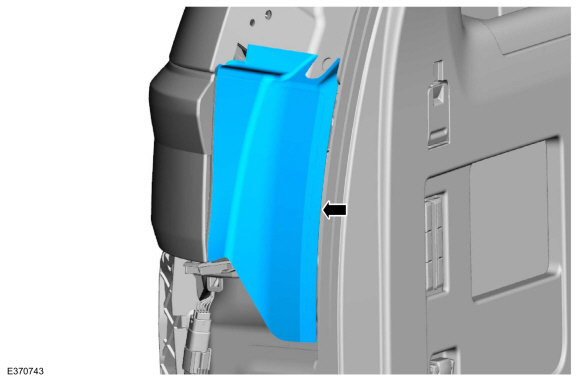

Release the clips and remove the rear lamp side trim.
-
Release the clips and remove the rear lamp side trim.
 |
-

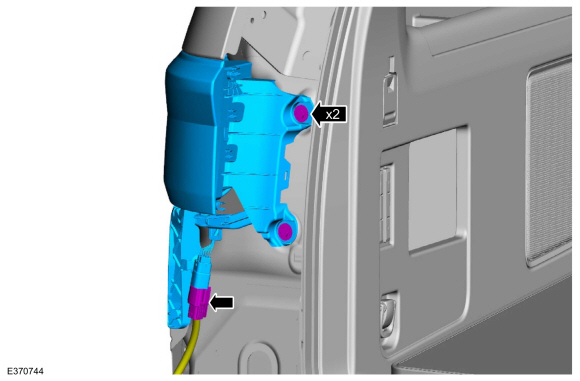

Remove the nuts and the rear lamp assembly.
-
Disconnect the rear lamp assembly electrical connector.
Torque: 40 lb.in (4.5 Nm)
-
Disconnect the rear lamp assembly electrical connector.
 |
Installation
-
To install, reverse the removal procedure.
Rear Fog Lamp. Removal and Installation
Removal
NOTE:
RH (right-hand) rear fog lamp shown, LH (left-hand) similar.
Remove the nuts and the rear fog lamp.
Disconnect the electrical connector...
Reversing Lamp. Removal and Installation
Removal
Remove the liftgate trim panel.
Refer to: Liftgate Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation)...
