Lincoln Navigator: Engine Emission Control - 3.5L EcoBoost (272kW/370PS) / Positive Crankcase Ventilation (PCV) Valve. Removal and Installation
Removal
NOTE: Removal steps in this procedure may contain installation details.
-

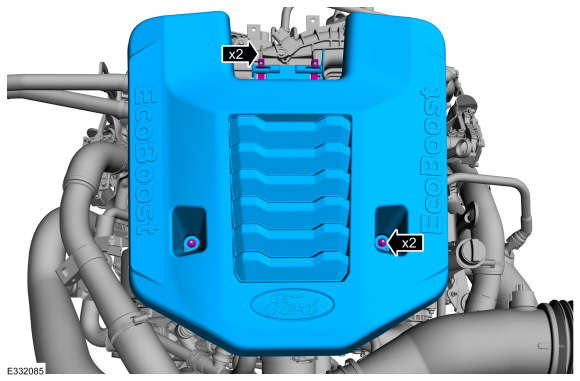

Remove the engine appearance cover retainers, release
the engine appearance cover from the rear retainers and then remove the
engine appearance cover.
 |
-
Refer to: Crankcase Ventilation Tube (303-08 Engine Emission Control - 3.5L EcoBoost (272kW/370PS), Removal and Installation).
-

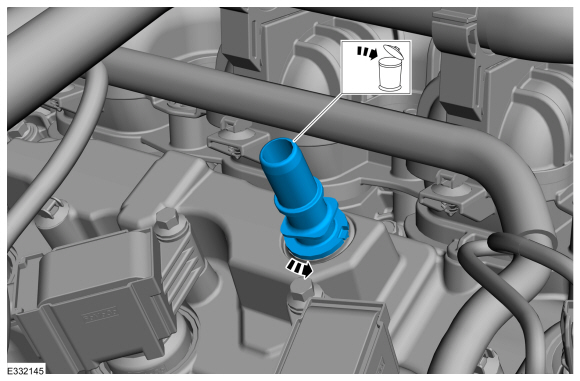

Rotate the PCV valve counterclockwise, then remove and discard the PCV valve.
 |
Installation
-
Lubricate the new PCV valve O-ring seal with clean engine oil.
 |
-
To install, reverse the removal procedure.
