Lincoln Navigator: Climate Control System - General Information / Driver Side Register. Removal and Installation
Removal
NOTE: Removal steps in this procedure may contain installation details.
-

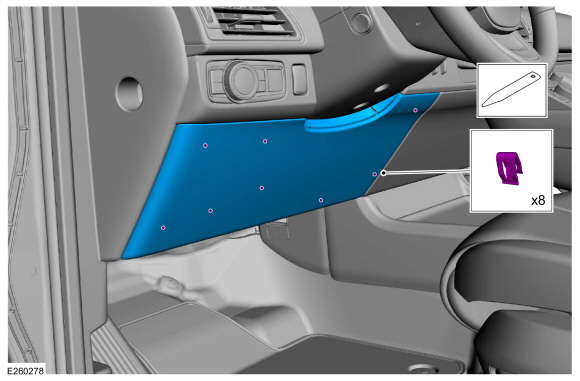

Detach the clips and remove the lower steering column opening cover.
 |
-

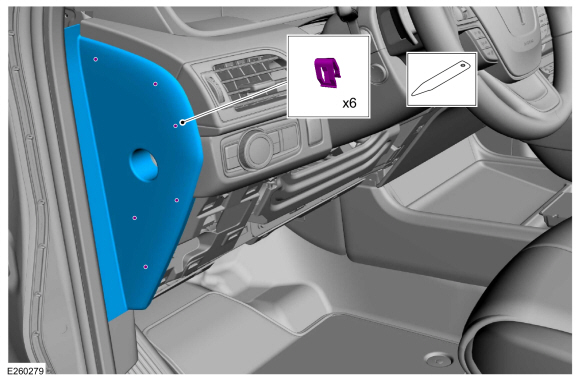

Detach the clips and remove the instrument panel lower side trim panel.
 |
-

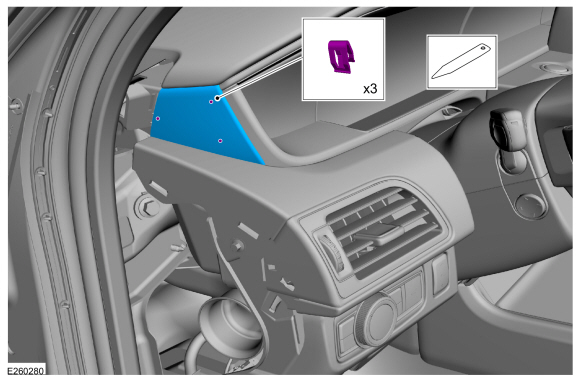

Detach the clips and remove the instrument panel upper side trim panel.
 |
-

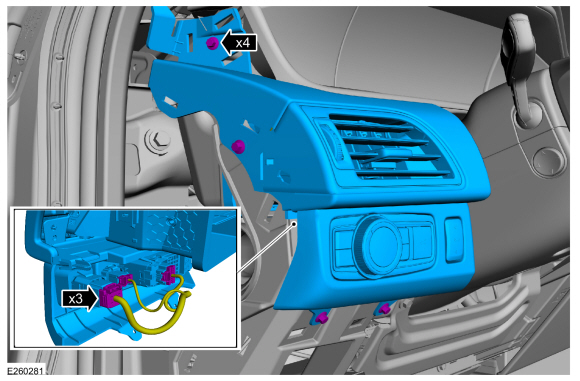

Remove the bolts, disconnect the electrical connectors and remove the register and switch panel assembly.
Torque: 22 lb.in (2.5 Nm)
 |
-

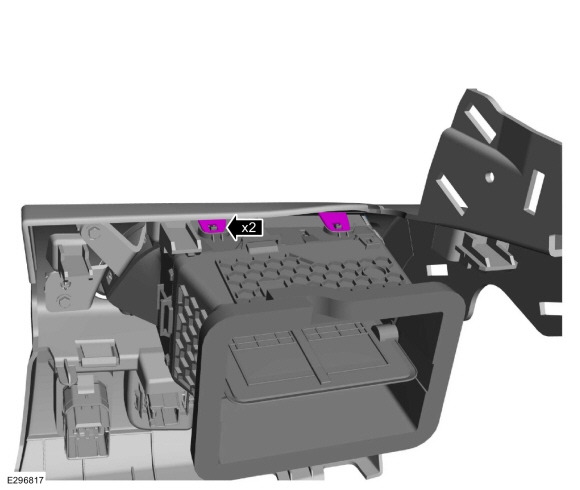

Release the top retaining clips.
 |
-

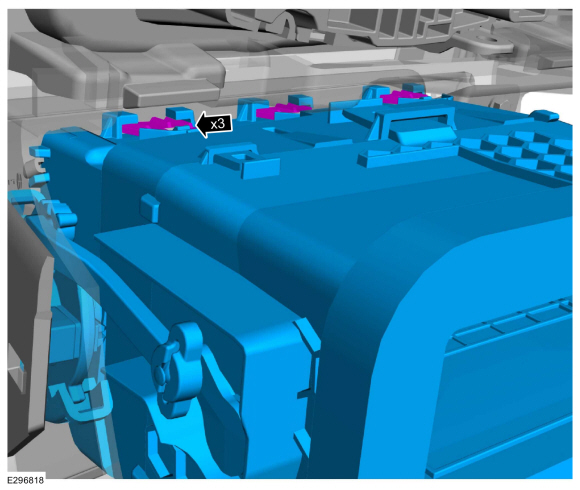

Release the retaining clips along the bottom and remove the driver side register.
 |
Installation
-
To install, reverse the removal procedure.
