Lincoln Navigator: Rear Drive Axle/Differential - Vehicles With: Ford 9.75 Inch Ring Gear / Differential Control Module Rear (DCMR). Removal and Installation
Removal
NOTE: Removal steps in this procedure may contain installation details.
-
With the vehicle in NEUTRAL, position it on a hoist.
Refer to: Jacking and Lifting (100-02 Jacking and Lifting, Description and Operation).
-
-

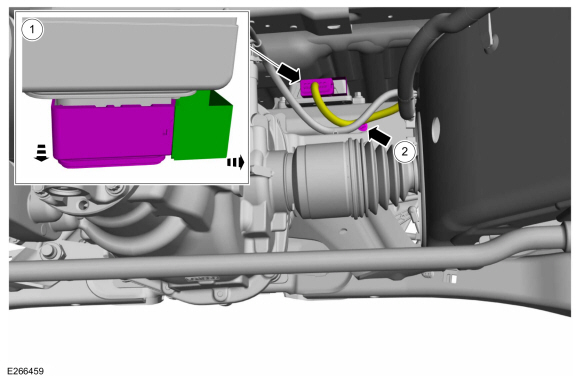

Disconnect DCMR electrical connector by disengaging the side locking tab and pulling on the harness.
-
Detach the wiring harness retainer and position aside.
-
Disconnect DCMR electrical connector by disengaging the side locking tab and pulling on the harness.
-
Disconnect DCMR electrical connector and detach the wiring harness retainer.
 |
-

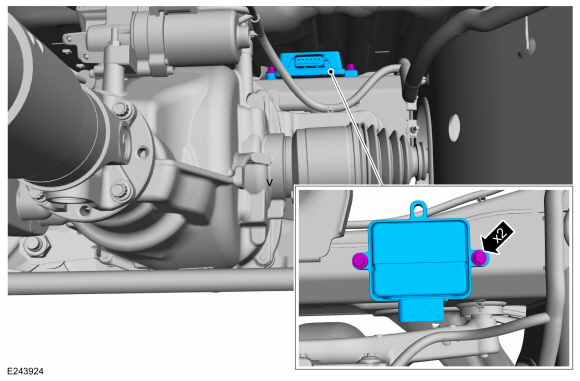

Remove the bolts and the DCMR .
Torque: 13 lb.in (1.5 Nm)
 |
Installation
- To install, reverse the removal procedure.
Differential Carrier - Vehicles With: Electronic Limited-Slip Differential. Removal and Installation
Special Tool(s) /
General Equipment
205-220Installer, Differential ShimTKIT-1985-FH
307-003
(T57L-500-B)
Holding Fixture, Transmission
Copper Hammer
Removal
Remove the HCU from the rear axle assembly...
Differential Housing Cover. Removal and Installation
Special Tool(s) /
General Equipment
Transmission Jack
Materials
Name
Specification
Motorcraft® Ultra Silicone SealantTA-29
WSS-M4G323-A8
Removal
Remove the rear axle assembly...
