Lincoln Navigator: Engine System - General Information / Cylinder Block Distortion. General Procedures
Special Tool(s) / General Equipment
| Feeler Gauge |
Check
NOTE: Refer to the appropriate Section 303-01 for the specification.
-
NOTE: Use a Straightedge that is calibrated by the manufacturer to be flat within 0.005 mm (0.0002 in) per running foot of length, such as Snap-On® GA438A or equivalent. For example, if the Straightedge is 61 cm (24 in) long, the machined edge must be flat within 0.010 mm (0.0004 in) from end to end.

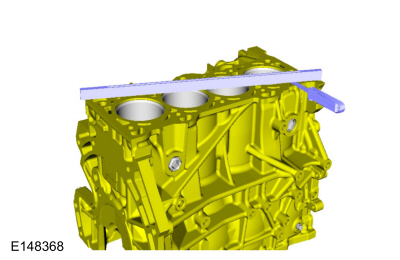

Use a Straightedge and a Feeler Gauge Set to inspect the cylinder block for flatness.
Use the General Equipment: Feeler Gauge
 |
Cylinder Block Core Plug Replacement. General Procedures
Special Tool(s) /
General Equipment
100-001
(T50T-100-A)
Slide Hammer
Materials
Name
Specification
Motorcraft® Threadlock 262TA-26
WSK-M2G351-A6
Repair
All core plugs
NOTE:
Cylinder block core plug shown, cylinder head core plug similar...
Cylinder Bore Taper. General Procedures
Check
NOTE:
Refer to the appropriate Section 303-01 for the specification.
Measure the cylinder bore at the top, middle and bottom
of piston ring travel in 2 directions as indicated...
